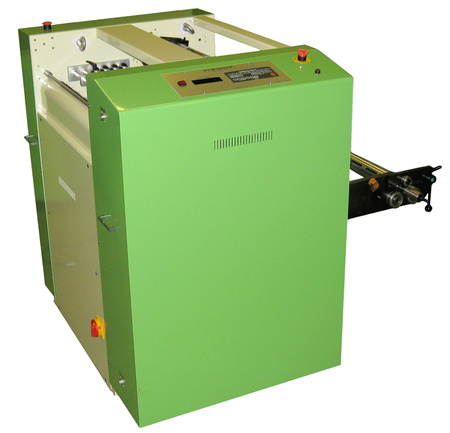

The Dimuken Rewinder model DC 8407-2250 is designed to operate in a stop - start situation at the end of a reel to reel continuous off-line finishing process. It can be used in conjunction with a Laser Printer, Hologram Encoder, Rotary Diecutter, or other free standing finishing module. The modular design of the system allows the unit to be moved to suit the requirements of the job and production location.

Usage

This machine is designed to operate on a slack web principle. A Tandem Control Unit (TCU) web sensor is placed at the in-feed side of the unit so that when there is sufficient paper on the TCU the Rewinder will start and only stop as the slack in the web lifts clear of the photocells in the TCU caused by the preceding machine having either slowed down or stopped.

Features

• • Motorized reel lift
• • Centre driven rewind system
• • Web tension control via a powder brake
• • Programmable tension for different paper stocks
• • Reel Diameter, tension and amount rewound constantly displayed
• • Tandem Control Unit to interface with preceding machine
• • Max. Reel Diameter is 1,270mm
• • Max. Web Width is 52cm
• • Paper Weights from 40gms to 200gms





View the Rewinder DC8407-2250 PDF Leaflet HERE
